THYRISTOR SINGLE PHASE POWER REGULATOR

  • Control Method :Phase Control Zero-Cross Switching Cycle Operation Control
  • Multi-Input CurrentVoltage Contact Voltage Pulse(SSR Drive Voltage)
  • You can choose either a phase control or zero-ross switching cycle operation control in both cases of contact propotion input and voltage pulse(SSR Drive Voltage)input
  • Input/output values and many kinds of parameters are displayed
  • Output soft-start/slow-up/slow-down function is equipped as a standard function.(0.00〜25.0s)
  • Free Voltage(100〜240V AC)
  • Automatic Distinction of Power Supply Frequency Rnage :45〜65Hz



Instruction manual

MP1 series

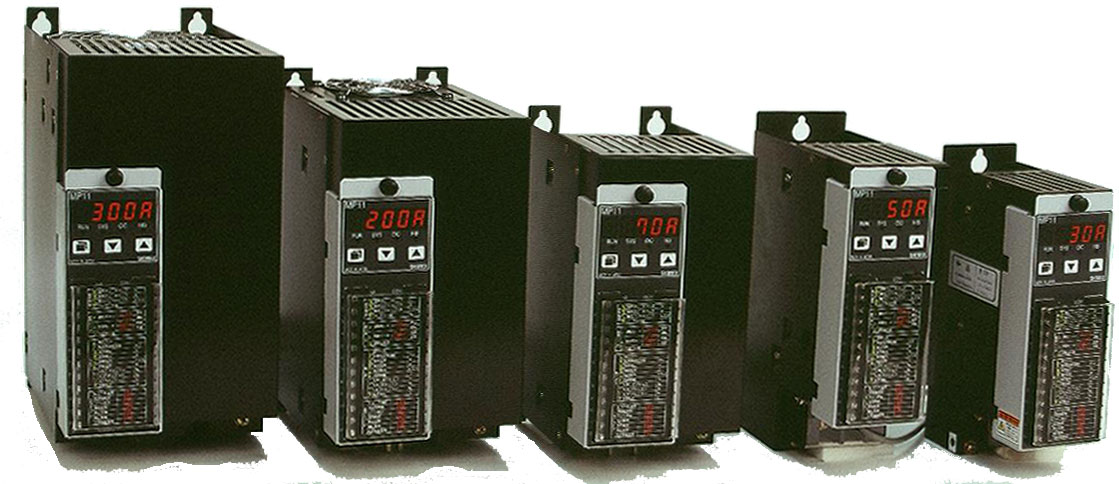

THYRISTOR SINGLE PHASE POWER REGULATOR

MP11 series (with feedback function)

  • Setting function by operating the keys on the front panel
  • 7-segment LED display of setting contents,input/output values,etc
  • Control input signal:Multi-input of urrent,voltage,contact,and voltage pulse
  • Feedback function is equipped as a standard(constant voltage,constant current,constant power,and voltage square)
  • many kind of alarm outputs are equipped as a standard,such as alarm of current failure,alarm of snapped heater wires
  • Switching over either of phase control method or to zero-cross switching cycle operation control method
  • Control voltage:Free voltage of 100〜240V AC
  • Choice of RS485 communcation:MODBUS or SHIMAX standard protocol(option)
